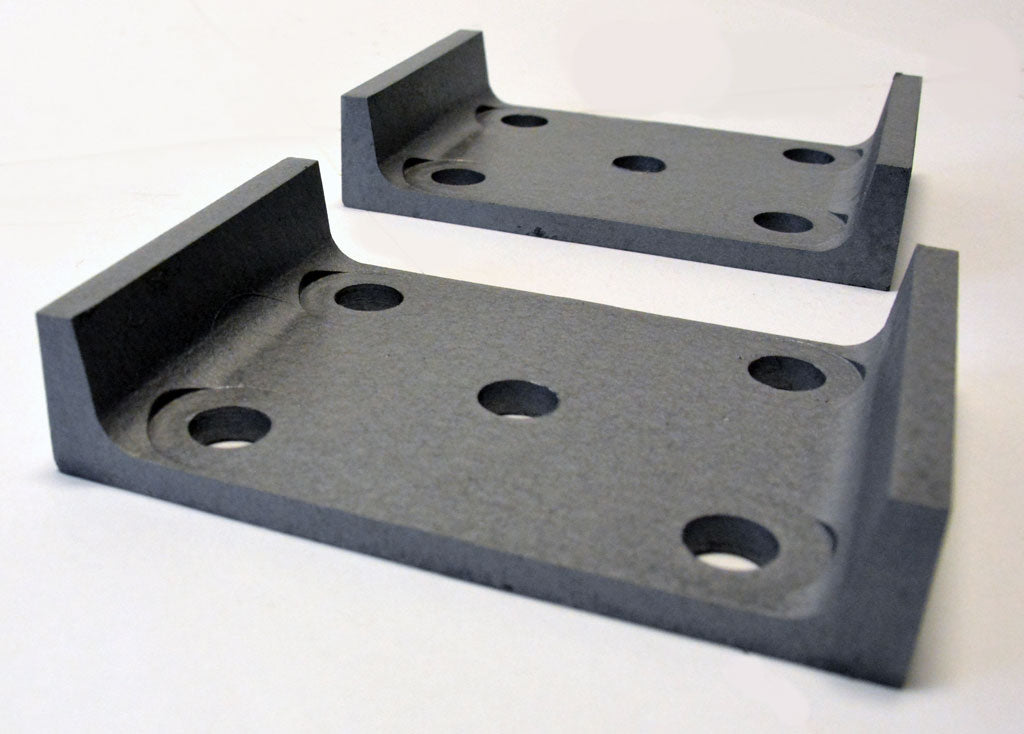

Our heavy-duty A36 structural steel tie plates will not bend when torqued. They are fast to install and torque easily. Works with click-style torque wrench.

Coated for corrosion prevention.

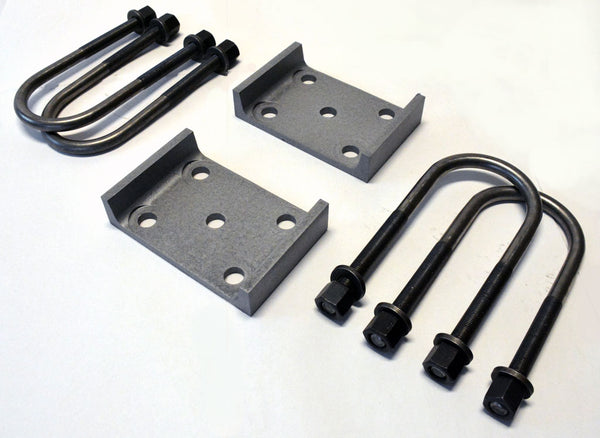

Kit contains 2 tie plates and 4 U-bolts for one axle.

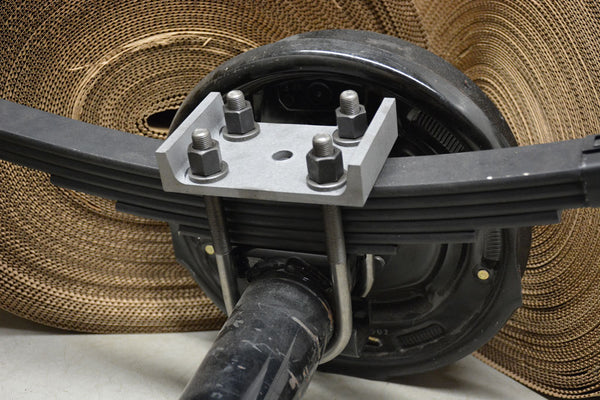

Fits 1-3/4" to 2" wide leaf spring with 3" diameter round axles with a 4000lb to 7000lb weight rating.

U-Bolts are 9/16" diameter grade 8.

Do you have a heavy duty application or need a lift or lowering block in a size that is not listed?

We can develop custom kits and block sizes in most configurations. To submit a custom request please fill out our web form: http://bit.ly/1oD8mcf

After we have the required information we will follow up with you via email.
